友邦 R型固定夹
产品材质： 尼龙PA66
防火等级： UL94-V2
使用方法： 将电缆置于固定扣内，再以螺钉固定。

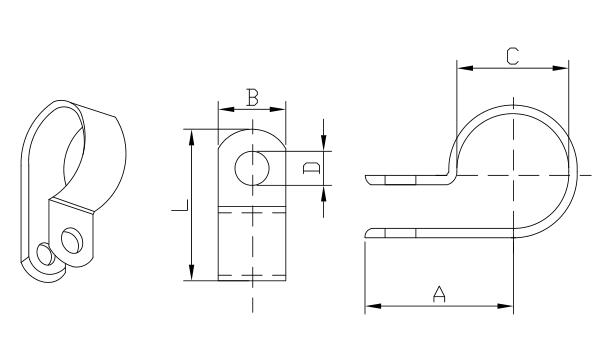

| 型 号 ITEM.NO |
A |
B |
C |
L |
螺钉孔 |
| (mm) |
(mm) |
mm |
INCH |
(mm) |
| CTH-1/8R |
9.5 |
9.6 |
3.2 |
1/8" |
19.8 |
4.8 |
| CTH-3/16R |
9.6 |
9.6 |
4.8 |
3/16" |
19.8 |
4.8 |
| CTH-1/4R |
12 |
10 |
6.35 |
1/4" |
22 |
4.6 |
| CTH-5/16R |
12 |
10 |
7.9 |
5/16" |
22 |
4.6 |
| CTH-3/8R |
12.5 |
12 |
9.5 |
3/8" |
24 |
4.6 |
| CTH-1/2R |
15.2 |
12 |
12.7 |
1/2" |
31 |
5 |
| CTH-5/8R |
18.2 |
12 |
15.8 |
5/8" |
34.3 |
4.6 |
| CTH-3/4R |
18.2 |
12 |
19.4 |
3/4" |
35 |
4.6 |
| CTH-1R |
22 |
12 |
25.4 |
1" |
43 |
4.6 |
|
