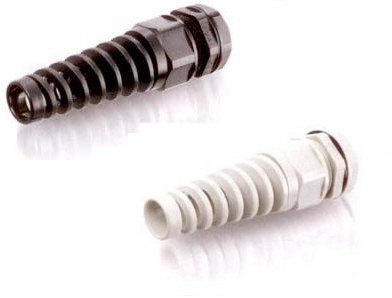

UPUN 折弯型尼龙防水接头
螺牙规格：公制M，德制PG
产品材质：PA66原料制成
防火等级：UL94V-2
防护等级：配合使用防水垫片，加紧紧迫头可达IP67
产品颜色：黑色、白色
工作温度：静态-40℃至85℃
| 型号 |
适用电缆外径 |
螺纹外径 |
螺纹长度 L1 |
结合长度L2 |
| PG7W |
3-6.5 |
12.5 |
8 |
65 |
| PG9W |
4-8 |
15.2 |
8 |
70 |
| PG11W |
5-10 |
18.6 |
8 |
78 |
| PG13.5W |
6-12 |
20.4 |
9 |
90 |
| PG16W |
10-14 |
22.5 |
10 |
100 |
| M12*1.5W |
3-6.5 |
12 |
8 |
65 |
| M16*1.5W |
4-8 |
16 |
8 |
65 |
| M18*1.5W |
5-10 |
18 |
8 |
78 |
| M20*1.5W |
6-12 |
20 |
9 |
90 |
| M22*1.5W |
10-14 |
22 |
10 |
100 |
| PG9WL |
4-8 |
15.2 |
15 |
70 |
| PG11WL |
5-10 |
18.6 |
15 |
78 |
| PG13.5WL |
6-12 |
20.4 |
15 |
90 |
| PG16WL |
10-14 |
22.5 |
15 |
100 |
| M16*1.5WL |
4-8 |
16 |
15 |
65 |
| M18*1.5WL |
5-10 |
18 |
15 |
78 |
| M20*1.5WL |
6-12 |
20 |
15 |
90 |
| M22*1.5WL |
10-14 |
22 |
15 |
100 |
