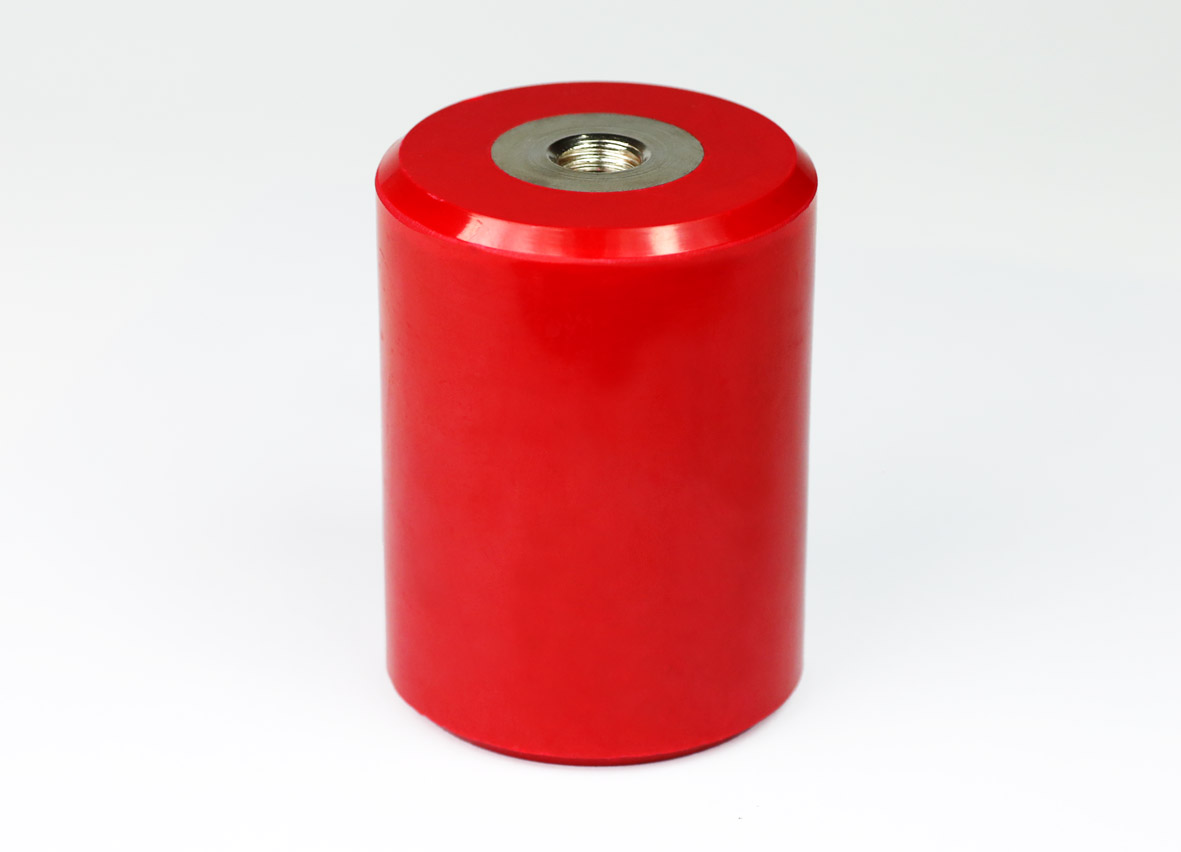

UPJ2系列圆柱形绝缘子
产品材质：不饱和聚酯树脂玻璃纤维增强模压塑料（BMC）
工作温度：-40℃~140℃
内螺嵌件：铁质 / 黄铜
| 型号 |

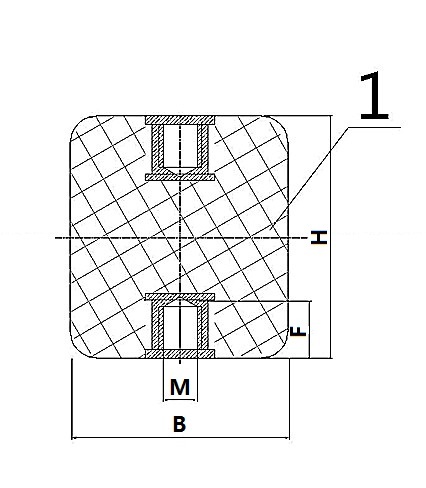

尺寸（mm） |
| H |
B |
F |
M |
| UPJ2-M6*30/30 |
30 |
30 |
9 |
M6 |
| UPJ2-M8*30/30 |
30 |
30 |
10.5 |
M8 |
| UPJ2-M8*40/40 |
40 |
40 |
10.5 |
| UPJ2-M8*50/40 |
50 |
40 |
13.5 |
| UPJ2-M8*50/50 |
50 |
50 |
13.5 |
| UPJ2-M10*40/40 |
40 |
40 |
15 |
M10 |
| UPJ2-M10*40/60 |
40 |
60 |
15 |
| UPJ2-M10*50/40 |
50 |
40 |
15 |
| UPJ2-M10*50/50 |
50 |
50 |
15 |
| UPJ2-M10*60/50 |
60 |
50 |
15 |
| UPJ2-M10*60/60 |
60 |
60 |
15 |
| UPJ2-M12*40/60 |
40 |
60 |
15 |
M12 |
| UPJ2-M12*60/50 |
60 |
50 |
15 |
| UPJ2-M12*60/60 |
60 |
60 |
15 |
| UPJ2-M14*70/70 |
70 |
70 |
22 |
M14 |
| UPJ2-M14*80/70 |
80 |
70 |
22 |
| UPJ2-M14*90/70 |
90 |
70 |
22 |
| UPJ2-M14*100/70 |
100 |
70 |
22 |
| UPJ2-M14*110/70 |
110 |
70 |
22 |
| UPJ2-M16*70/70 |
70 |
70 |
22 |
M16 |
| UPJ2-M16*80/70 |
80 |
70 |
22 |
| UPJ2-M16*90/70 |
90 |
70 |
22 |
| UPJ2-M16*100/70 |
100 |
70 |
22 |
| UPJ2-M16*110/70 |
110 |
70 |
22 |
